It cuts textile waste into desired sizes to prepare them for the garnett machine, pre-opener, and shifanoz machines. It operates with 1 fixed and 2 rotary blades. The cutting size can be adjusted using speed control devices on the conveyor and discharge belts.
Opens large pieces from the cutting machine output. Prevents large pieces from entering the garnett machine. Improves opening quality and extends wire life. Increases garnett machine speed. Installed power: 30 kW.
It is specially designed to remove pieces that are not opened in shifanoz and garnett machines and also performs light opening. By preventing unwanted pieces from entering the system, it extends the life of open-end machines and improves quality. Installed power: 18 kW.
The product from the pre-opener moves to the box room after the first opening. A pin mat ensures a homogeneous mix. When garnett silos request, it fills them sequentially and waits. The magnet at the outlet prevents metal pieces entering the garnett machine. Installed power: 7.5 kW.
Products from the cutting machine pass through the pre-opener and automatically feed the silo storage. The silo regularly feeds the machine with the desired density. The machine has 3 stages, each opening the product. Wire design and speeds are adjusted according to the product. Installed power: 60 kW, operated by 6 workers.
This machine reduces textile waste and enables the reuse of recycled fibers, especially common in cotton and cotton-polyester recycling. Applications include yarn production, non-woven sectors (upholstery, furniture, automotive, insulation), clothing, and fashion raw materials. Installed power: 610 kW, operates 24 hours with 12 workers.

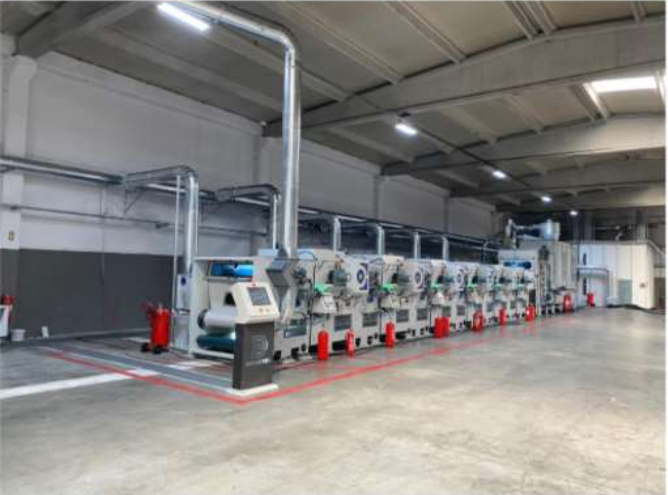

The carding machine produces fabric without weaving or knitting by aligning fibers. Steel wires on the cylinder open, align, and clean the fibers, ensuring even fiber distribution.
The bale opener loosens compressed fiber bales, mixes them, and ensures even distribution. It operates mechanically and transfers the fibers to the next stage via belts or airflow.

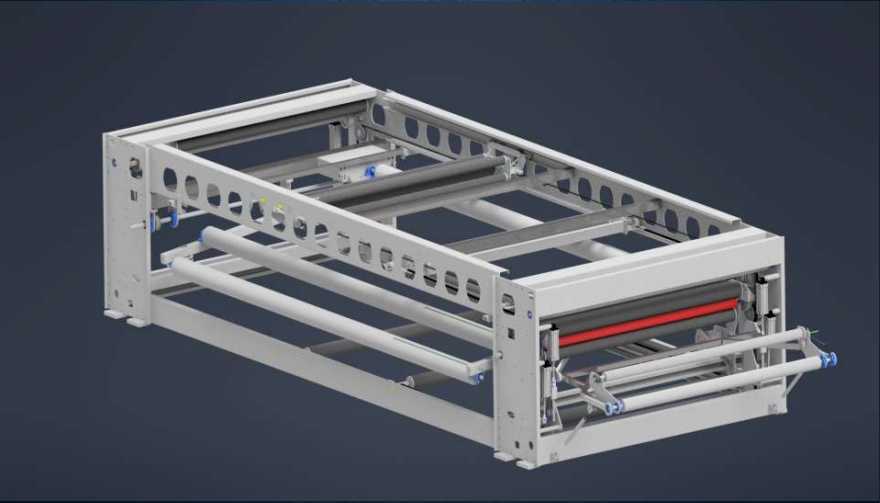

The web layering machine in non-woven production arranges fibers in a uniform and cross-layered manner, ensuring fabric consistency and durability. Fibers are first distributed, then cross-laid, and finally bonded.
